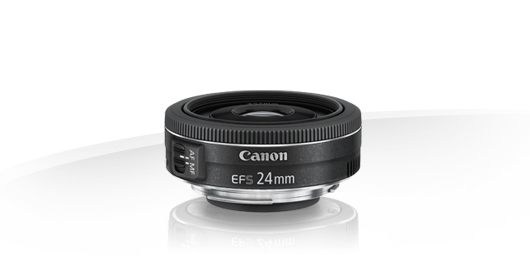

Canon EF-S 24mm f/2.8 STM Specifications

OPTICAL FEATURES/SPECIFICATIONS

Image size

APS-C

35mm film equivalent focal length (mm)

38mm

Angle of view (horzntl, vertl, diagnl)

59º 10', 50º 35',34º 55'

Lens construction (elements/groups)

6/5

No. of diaphragm blades

7

Minimum aperture

22¹

Closest focussing distance (m)

0.16

Maximum magnification (x)

0.27

Distance Information

Yes

Image stabilizer

-

AF actuator

STM

DUST/MOISTURE RESISTANCE*

Filter diameter (mm)

52

Max. diameter x length (mm)

68.2 x 22.8

Weight (g)

125

ACCESSORIES

Lens cap

E52II

Lens hood

ES-52

Lens case/pouch

LP811

Rear cap

Lens Dust Cap E

Magnification w/ Extension Tube EF12 II

0.77-0.50

Magnification w/ Extension Tube EF25 II

1.38-1.11

Extender Compatiblity

Not Compatible

Footnote

¹ Minimum aperture if using 1/3stop increments
