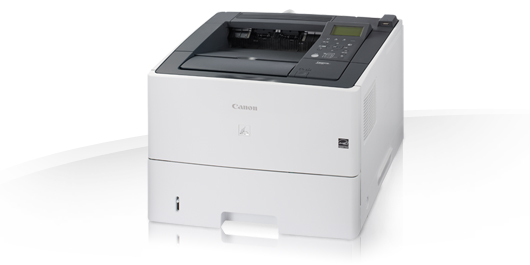

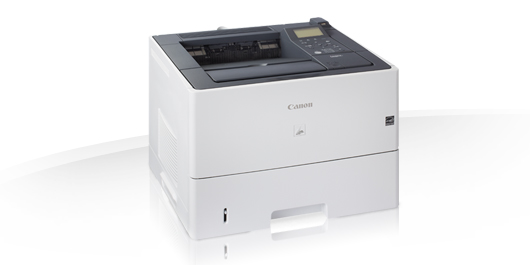

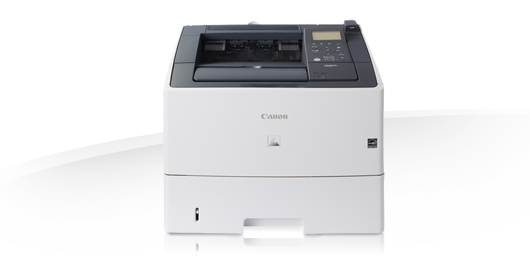

Canon i-SENSYS LBP6780x Specifications

Print Speed

40 ppm mono (A4)

Printing Method

Monochrome laser beam printing

Print Quality

Up to 1200 x 1200 dpi

Print Resolution

600 x 600 dpi

Warm-up Time

28 sec or less

First Page Out Time

8.6 sec

Duty Cycle

Max. 100,000 pages per month ¹

Print Margins

5mm top, bottom, left and right （envelope : 10mm）

Paper Input (Standard)

500-sheet cassette

100-sheet multi-purpose tray

Paper Input (Option)

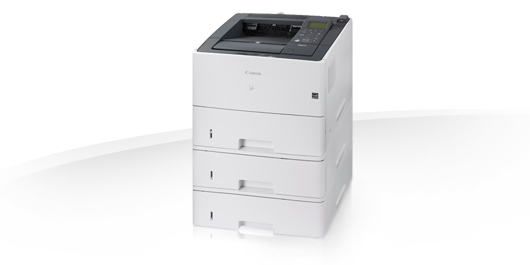

500-sheet cassette x 2

Paper Output

250-sheet face down, 50-sheet face up.

Media Types

Plain paper, Heavy Paper, Transparency,

Label, Index card, Envelope

Media Sizes

Cassette (Standard and optional): A4, B5, A5 ,A5 landscape, A6, LGL, LTR, Executive, 16K,

Custom sizes: Width 105.0～215.9mm x Length 148.0～355.6mm

Multi-purpose tray: A4, B5, A5,A5 landscape, A6, LGL, LTR, Executive, 16K,

Custom sizes: Width 76.2～215.9mm x Length 127.0～355.6mm

Media Weights

Cassette (Standard and optional): 60 to 120 g/m²

Multi-purpose tray: 60 to 199 g/m²

Double Sided Printing

Automatic

Power Requirements

220-240V (±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx 1,400 W or less

Active: Approx 660 W

Standby: Approx 15 W

Sleep modes:

Approx 5.4 W (Sleep Mode 1)

Approx 1 W (Sleep Mode 2),

Typical Electricity Consumption (TEC): 1.9 kWh/Week

Lot26 (http://www.canon-europe.com/For_Work/Lot26/index.aspx)

Noise Level

Sound power ²:

Active: 7.3 B or less

Standby: Inaudible

Sound pressure ²:

Active: 54.5 dB(A) or less

Standby: Inaudible

Dimensions (W x D x H)

454mm x 424mm x 345mm

Weight

approx.16.6kg

Operating Environment

Temperature：10 to 30ºC (50 to 86ºF).

Humidity：20 to 80%RH（no condensation）

Control Panel

5 line LCD display

9 LED indicators

12 Operation keys

Processor Speed

528MHz＋264MHz

Memory

768 MB

Printer Languages

UFRII (Ultra Fast Rendering), PCL5e, PCL6, Adobe® PostScript Level 3

Fonts

93 PCL fonts, 136 PS fonts

Interface and Connectivity

USB Host, USB 2.0 High-Speed, 10BASE-T/100 BASE-TX/1000BASE-T

Software and Printer Management

Remote User Interface (RUI), Secure Print

with optional SD Card-B1, Canon Mobile

Printing app for iPad and iPhone

Operating Systems Compatibility

Windows XP(32bit/64bit)/ Vista (32bit/64bit)/ 7 (32bit/64bit)/ 8 (32bit/64bit)/ Server 2003 (32bit/64bit) / Server 2008(32bit/64bit) / Server 2008 R2 (64bit)/

Mac OS 10.5.x - and up ¹

Linux ²

Citrix

All-in-One Cartridges

Standard: Cartridge 724 (6,000 pages ¹)

High yield: Cartridge 724H (12,500 pages ¹)

Items

PAPER FEEDER PF-45 (500-sheet cassette)

SD Card-B1

Barcode Printing Kit - F1 (Barcode ROM module)
