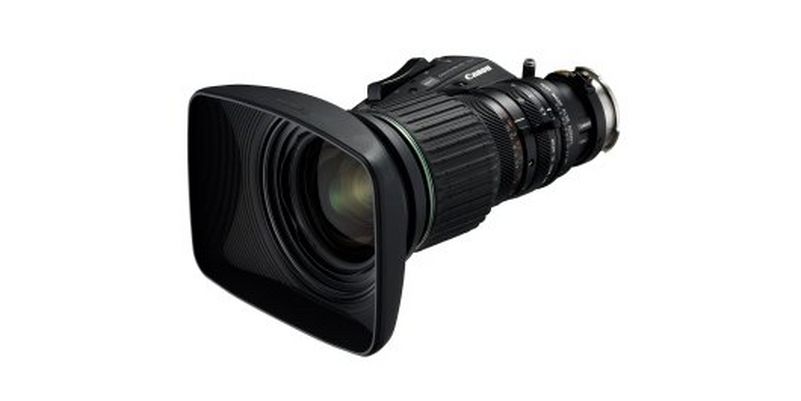

KH13x4.5 KRS
The KH13x4.5 KRS is a 1/2" portable wide angel lens that provides great optical performance and value.
Benefits
- Focal range 4.5~59mm
- MOD 0.4M (10mm with Macro)
- Advanced Servo System
- Shuttle shot technology
- Ecological, ergonomic design
Detailed Features
Take a look at a more detailed look into the Canon KH13x4.5 KRS
Wide angle 1/2" portable HD lens
The KH13x4.5 KRS is a wide angle HDTV lens with an excellent
performance-cost optimization. In addition, it offers focal lengths
of up to 59mm and a wide field of view of 75.7 degrees. This is a
lens that offers excellent operational capabilities at a very
attractive price in a light compact package weighing 1.59kg.
The lens has high MTF over the entire image plane, minimization of
chromatic aberrations, and maximization of image contrast. Relative
light distribution is optimized for the more open aperture settings
and uniformity of brightness across the image plane combined with
the high contrast and excellent picture sharpness produces vividly
clear HD pictures. Contrast is extended - flare, veiling glare, and
any internal reflections have been substantially reduced. It has
tight control of the geometric distortion at wide-angle settings
and spectral transmittance characteristic adheres to HDTV
colorimetric standards.
Optical Technologies
Newly developed optical materials combined with the very latest
lens element design innovations and multilayer coatings - that
produce an unsurpassed pristine imaging system for the most
discerning production team.
Internal Focus
A Canon design innovation that uses a floating optical system to
better control chromatic aberrations.
Control Technologies
Enhanced servo system called Shuttle Shot that adds value-added
creativity to handheld acquisition systems.
Advanced Drive technology - encompasses servo control that allows
the operator to precisely zoom between two pre-programmed zoom
positions.
Maximum Zoom speed is 1.2 seconds over entire range.
Auto focus drive system is built into the lens and this interfaces
via a serial digital link to the Sony cameras where the auto focus
detection system is incorporated.
Mechanical Technologies
Compact drive unit is mounted to the lens at a 12.5 degree angle
for comfort and balance.
Aluminum alloy body for light weight and exceptional
durability
Ecological Design
All contemporary Canon lenses avoid the use of materials and
substances potentially harmful to the environment. Lead has been
removed from all optics and other identified substances from all
components comprising the composite lens system.
