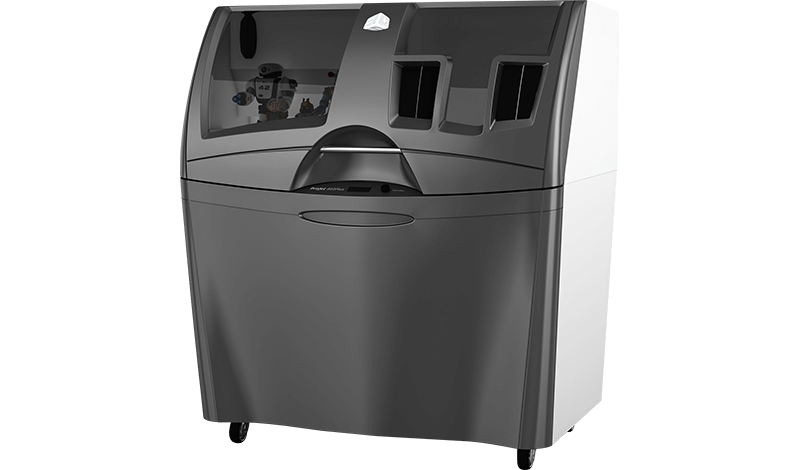

ProJet 460Plus
Specifications
Key Features
Maximum build envelope capacity: 203mm (W) x 254mm (D) x 203 mm (H)
CMY colour
Resolution: 300 x 450 dpi
Specifications in detail
Printer
Resolution
300 x 450 DPI
Colour
CMY
Pastel or vibrant color options
No
Number of Jets
604
Number of Print Heads
2
Minimum Feature Size
0.03 inches (0.8 mm)
Layer Thickness
0.004 inches (0.1 mm)
Vertical Build Speed
0.8 inch/hour (20mm/hour)
Prototypes per Build*
18
Electrical
90-100V, 7.5A 110-120V, 5.5A 208-240V, 4.0A
Dimensions (W x D x H)
3D Printer Crated: 55 x 45 x 62 inches (140 x 114 x 158 cm)
3D Printer Uncrated: 48 x 31 x 55 inches (122 x 79 x 140 cm)
Noise
Building: 57 dB
Core Recovery: 66 dB
Vacuum (open): 86 dB
Fine Decoring: 80 dB
Weight
3D Printer Crated: 273 kg
3D Printer Uncrated: 193 kg
Automated Setup and Self Monitoring
Yes
Material Recycling
Yes
Automatic Build Platform Clearing
Yes
Part Cleaning
Intergrated
Intuitive Control Panel
Yes
Integrated Materials
Yes
Input Data File Formats Supported
STL, VRML, PLY, 3DS, FBX, ZPR
Client Operating System
Windows® 7 & Vista®
Operating Temperature range
13-24 ºC
Operating Humidity Range
20-55 % - non-cond.
Certifications
CE, CSA
Consumables
Build Materials
VisiJet PXL
