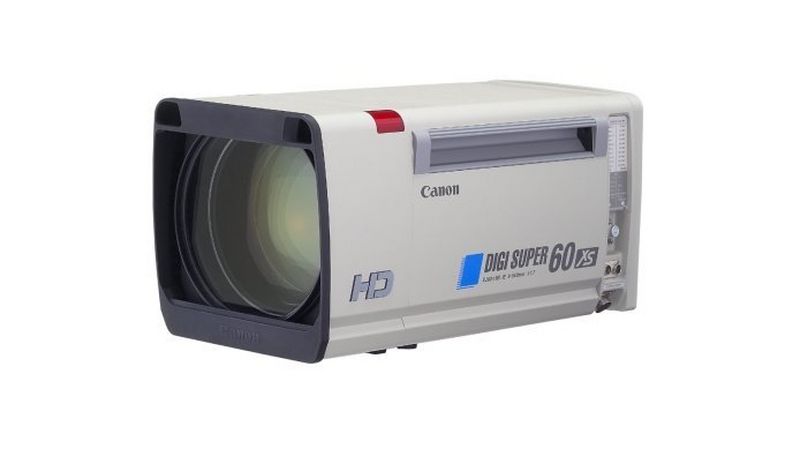

An affordable, long focal length Field Lens, the DIGISUPER 60 xs features powerful optics with internal focus. Ideal for capturing HDTV and SDTV images in the field, large studios or special venues.
- Focal length 9.0mm to 540 mm
- Power optics
- Internal focus
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
Take a look at a more detailed look into the Canon DIGISUPER 60
Wide focal range
The DIGISUPER 60 xs offers a focal length range of 9.0mm to 540 mm (1080mm with extender). It offers good telephoto flexibility for high definition sports and entertainment event coverage within constricted production budgets.
Advanced materials (including a high index ultra low dispersion material) combined with contemporary optical design and multilayer coatings produce an unsurpassed imaging system, delivering pristine results.
Internal Focus uses a floating optical system to control chromatic aberrations. It allows operators to achieve wide-angle with reduced distortion and minimises variation of the centre of gravity while focusing.
Precision digital servo system
A digital servo system uses Canon-developed 16-bit optical rotary encoder devices to ensure precision control and repeatability of zoom and focus settings. The system allows for digital interface to Robotic and Virtual studio systems. 10-bit Iris Compatibility ensures high-resolution iris control.
Constant Angle Focusing System (CAFS)
CAFS uses a 32-bit CPU to eliminate focus "breathing". It calculates focus changes and synchronises the zoom to counteract picture size/angle of view changes when focusing.
Robust ergonomic design
The lens is ergonomically designed to eliminate centre-of-gravity variations with focus movement. Sealed optics offers protection against dust and smoke, while innovative electrical sealing techniques protect against radio interference.
All contemporary Canon lens systems are free of lead and other substances identified as harmful to the environment.
Crossover technology options; 4-position Turret
A crossover system allows use of the associated camera to switch in the optical extender system or change the aspect ratio between 16:9 and 4:3. 4-position turret includes spare switch positions.
Find out more about the Canon DIGISUPER 60, its features and what it can do.
